Eds Rod Shop rolling chassis'

Typically Eds Rod Shop build frames, rolling chassis, part built cars for owners to complete and also complete cars. Below are a few examples of rolling chassis' we have built for customers. We don't build street rods. Please don't ask.

-----------------------------

 1932 Ford rolling chassis for a 1932 Ford roadster
 This 1932 Ford frame is one of Eds Rod Shop's restored frames, part number B-5005. Delivered to the customer as a rolling chassis with a box full of parts mounted on the frame.
 Rolling Model-A chassis for a 1928-31 A-V8
This 1928-31 Ford frame was zedded at the rear and fitted with a 1932 Ford K-member
1932 Ford A-V8 rolling chassis for a 1931 Ford coupe
Bild 032.jpg (1355134 Byte) Bild 033.jpg (1321698 Byte) Bild 034.jpg (1300542 Byte)
Bild 035.jpg (1330121 Byte) Bild 036.jpg (1301853 Byte) Bild 037.jpg (1315036 Byte)
Bild 038.jpg (1257164 Byte) Bild 039.jpg (1363543 Byte) Bild 013.jpg (1444449 Byte)
This 1932 Ford frame features a Model-A rear crossmember which lowers the rear of the car substantially. At the front we have a unique Ambulance front crossmember. The frame also features X-member strengthening legs which strengthen the '32 frame.
1932 Ford A-V8 chassis for a 1930 Ford Tudor
1932 X-Framed Ford Chassis for a 1931 Ford roadster see build thread

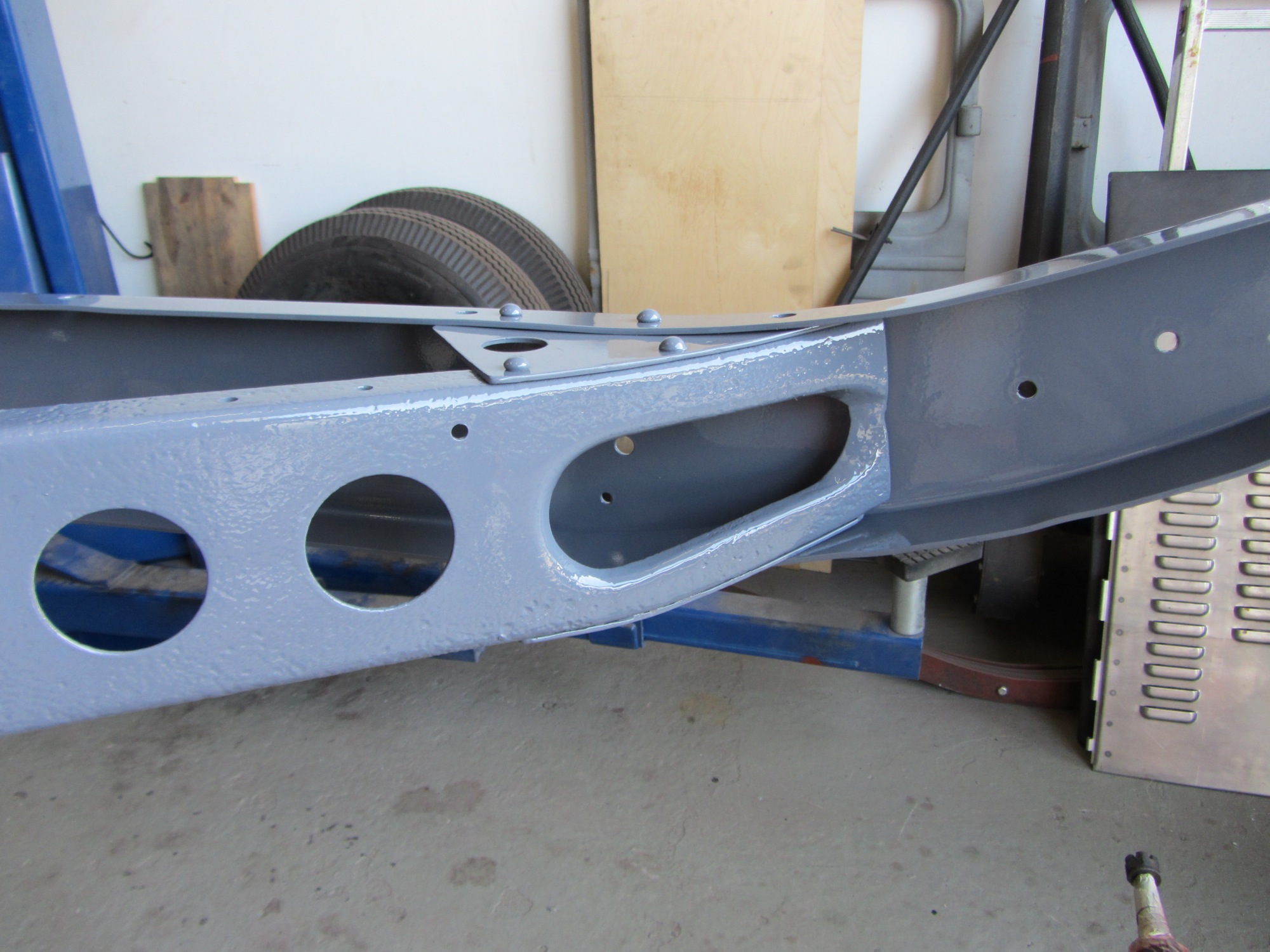

This is Ed's famous 1932 X-frame. This frame utilizes a 1942-48 center section. This ensures a torsionally rigid frame without boxing
Here the A-V8 frame is assembled with it's drivetrain. The A-V8 frame features original Model-A front and rear crossmembers
The center section of the X-member is reversed to allow a location point for the rear wishbones which have been joined together with a Model-A front yoke.
1932 X-Framed Ford Chassis for a 1932 Ford roadster
Bild 018.jpg (89151 Byte) Bild 019.jpg (82572 Byte) Bild 020.jpg (96348 Byte)
This extremely strong 1932 frame utilizes a 1948 Ford center X section to provide rigidity
Bild 023.jpg (90811 Byte) Bild 024.jpg (80222 Byte) Bild 025.jpg (79008 Byte)
Center box top and bottom cut and sectioned and flipped top to bottom
Bild 027.jpg (88221 Byte) Bild 029.jpg (80281 Byte) Bild 031.jpg (80752 Byte)
Pictured here before final re-riveting together
Bild 033.jpg (73590 Byte) IMG_4554.jpg (242227 Byte) IMG_4561.jpg (266942 Byte)
A Model-A front crossmember lowers the car and '40-'48 Mercury front engine mounts support the flathead V8
The original '48 transmission mount now supports the rear ladder bars.
This frame was modified to enable the fitment of an S10 5-speed transmission.
1934 Ford with 350 SBC
This rolling 34 was a rusty twisted abused original frame from Argentina. We fitted it with the first Unisteer steering in Germany
 Boxed and repaired by Eds Rod Shop, this frame is now straight again. Now fitted with a 350SBC and TH350
Although fitted with coil over shocks at the rear we were able to retain the original rear crossmember with cutout pockets for the coilovers..
The frame was modified to fit the newer components without losing it's original character
1934 Ford Pickup rolling chassis - see build report
Bild 022.jpg (123866 Byte) Bild 023.jpg (115891 Byte) Bild 024.jpg (131670 Byte)
